Week 3 Practice: Data Wrangling & First Tableau Charts

BUS220 - Business Intelligence and Analytics

Submission Checklist

2 points (satisfactory completion) | Deadline: 3 days after the practice session

Submit three files in Moodle:

File 1 — billboard-long.csv (Session 1, Parts 1-4):

File 2 — billboard-songs.csv (Session 1, Part 5):

File 3 — Tableau workbook (Session 2):

Tools & Data

Session 1 instructions use Syto (syto.app) — browser-based, no install needed. If you prefer Python, R, or another tool, the expected outputs are described at each checkpoint. The steps are the same conceptually; you’re on your own for tool-specific details.

Session 2 uses Tableau Public — download from public.tableau.com.

Dataset: billboard-raw.csv — download from Moodle.

Billboard Hot 100 chart data from 2000: 317 songs with weekly rankings across 76 week columns (x1st.week through x76th.week). The problem: “week” is a variable, not 76 separate variables. Your job is to fix this.

Session 1: Data Wrangling

Part 1: Import & Inspect

  1. Import billboard-raw.csv into Syto
  2. You should see 317 rows, 79 columns
  3. Scroll right to see the 76 week columns — most cells are empty

Part 2: Reshape

Remove unnecessary columns

Columns tab > Edit columns. Remove year and date.peaked — they add no information.

Unpivot

Table tab > Unpivot. Choose “Columns to keep (as index)” and select the metadata columns: artist.inverted, track, time, genre, date.entered. The 76 week columns become key-value pairs. Name the key column week_label and the value column rank.

You should now have roughly 24,000 rows — 317 songs x 76 weeks, with many empty ranks.

Filter out missing ranks

Rows tab > Filter. You need to remove rows where rank is null or an empty string (the raw data has both). Try: rank != null && rank != ""

ImportantCheckpoint: 5,307 rows

After filtering, you should have exactly 5,307 rows. If you have 24,000+, the filter didn’t work. If you have slightly more than 5,307, empty strings survived — check for blank values in the rank column.

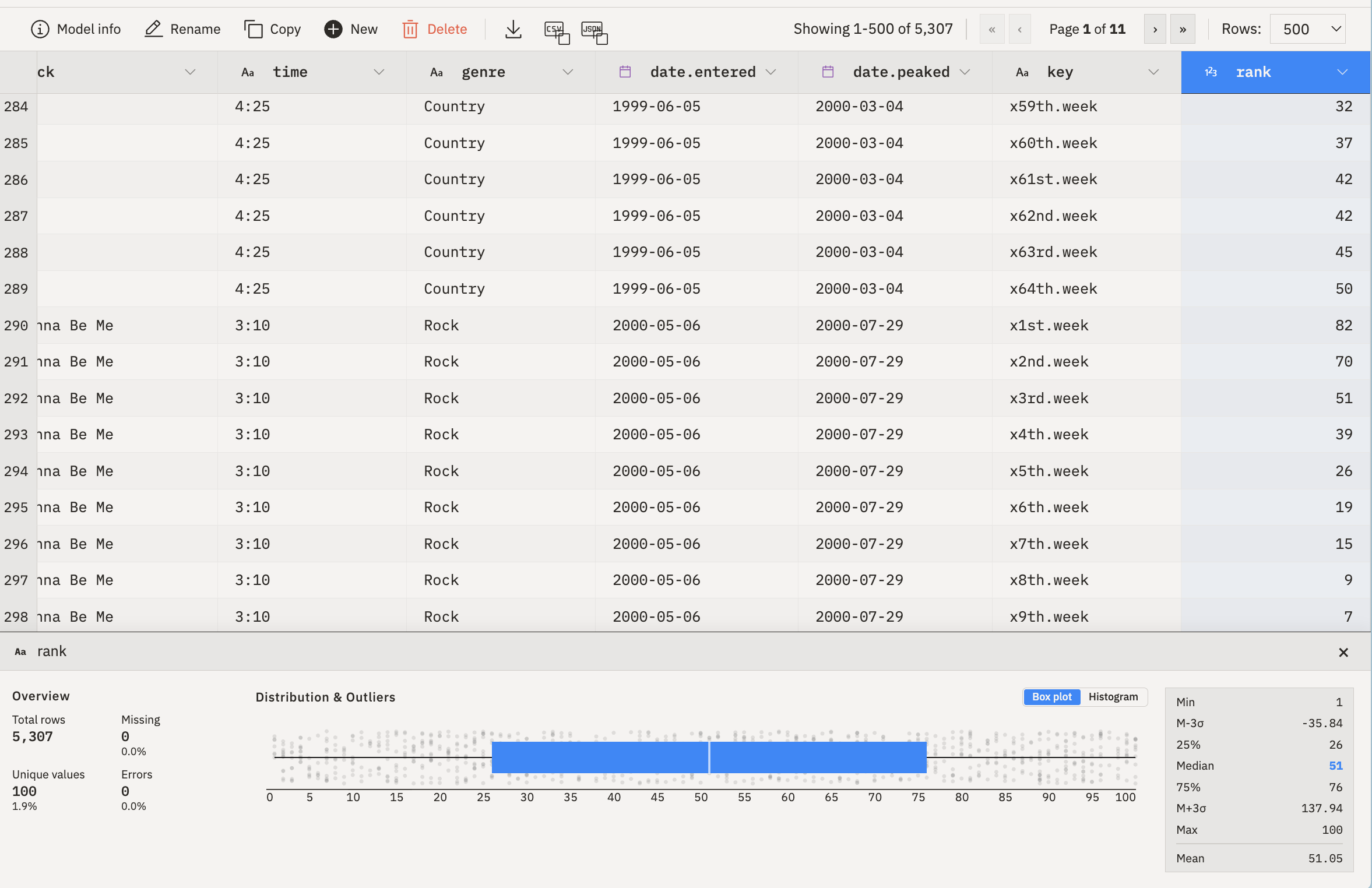

After unpivot and filter — 5,307 rows in long format

Part 3: Clean & Derive

Rename columns

Columns tab > Edit columns:

  • artist.inverted > artist
  • date.entered > date_entered

Extract week number

The week_label column has values like x1st.week, x22nd.week. You need just the number.

Columns tab > Extract. Source: week_label, regex: (\d+), capture group: 1, new column name: week. Then remove the original week_label via Edit columns.

Fix data types

Columns tab > Convert:

  • week > Integer
  • rank > Integer (check “Strip non-numeric characters first”)
  • date_entered > Date

Derive duration_seconds

The time column has values like 3:33 (minutes:seconds). Create a numeric column duration_seconds by splitting on : and computing minutes * 60 + seconds.

Columns tab > Derive. Name: duration_seconds. You’ll need to extract the minute and second parts and combine them — try Syto’s string and math functions in the expression editor.

Derive chart_date

The calendar date of each ranking: chart_date = date_entered + (week - 1) * 7 days.

Columns tab > Derive. Name: chart_date. Use Syto’s date arithmetic functions — the expression editor has autocomplete.

Tip

If you can’t get chart_date working, skip it. You can create it later in Tableau: DATEADD('week', [Week]-1, [Date Entered]).

Part 4: Validate & Export

ImportantCheckpoint: billboard-long.csv
  • 5,307 rows, 8-9 columns
  • Columns: artist, track, time, duration_seconds, genre, date_entered, week, rank, chart_date
  • week and rank are integers, dates are dates, no nulls in rank

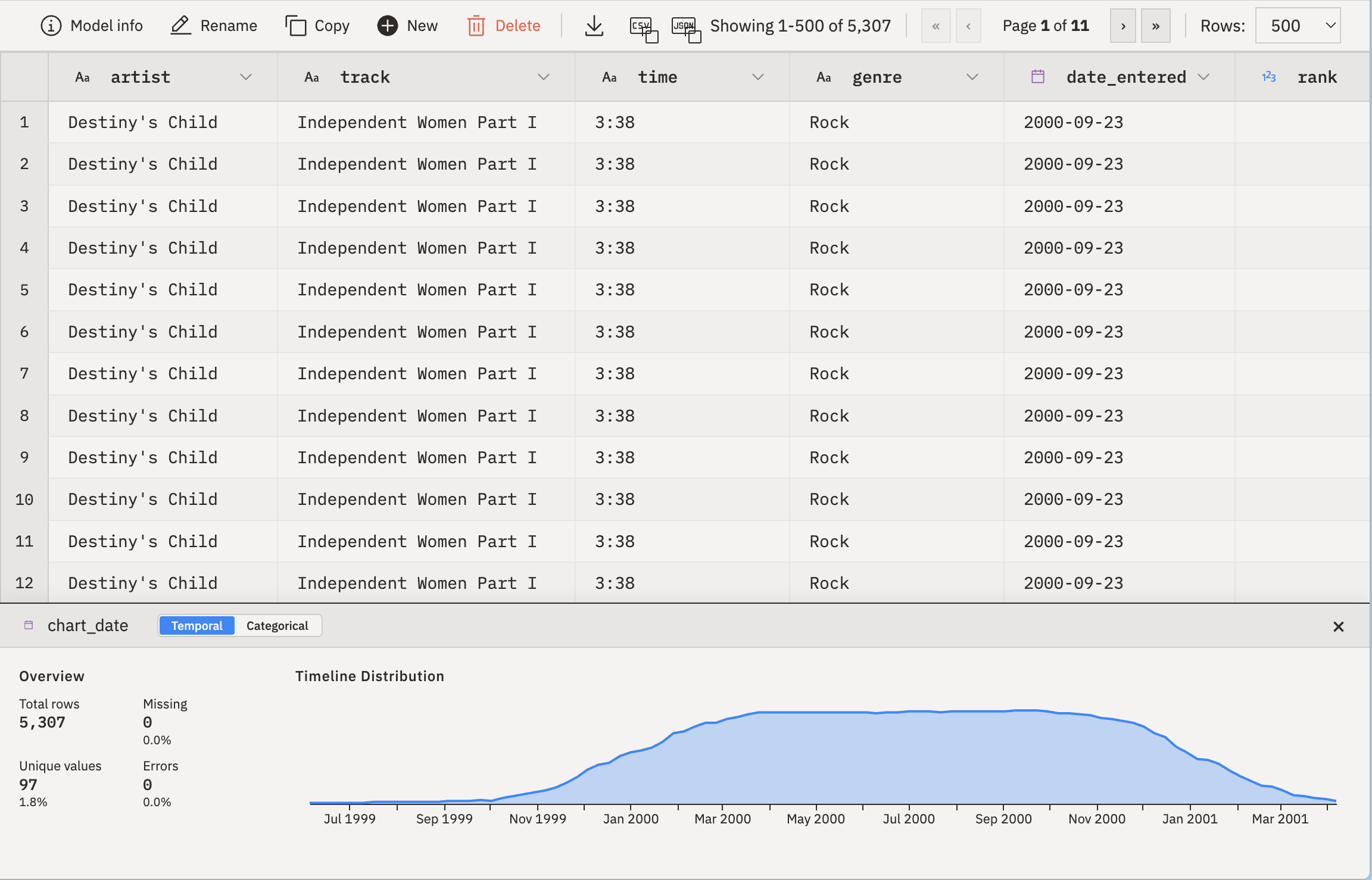

Expected result after all cleaning steps

Export as CSV: billboard-long.csv

Part 5: Song-Level Summary

Group your long data to one row per song.

Table tab > Group by:

  • Group by: artist, track, time, genre
  • Aggregations:
    • weeks_on_chart = count of rows
    • peak_rank = min of rank (rank 1 is the best)

Optionally, add a songs_by_artist column: count how many unique songs each artist has. This is a window calculation — after grouping, count rows per artist and assign that number back to every song by that artist. In Syto, try using Derive with a window/partition expression after the group-by step.

ImportantCheckpoint: billboard-songs.csv
  • ~316 rows, one per song
  • weeks_on_chart ranges from 1 to ~57
  • peak_rank ranges from 1 to ~99

Export as CSV: billboard-songs.csv

Session 2: First Steps in Tableau

If you didn’t finish Session 1, download the pre-built CSV files from Moodle.

Part 1: Connect Data

  1. Open Tableau Public
  2. Connect > Text file > select billboard-long.csv
  3. Verify types: dates show calendar icons, rank/week show #, text fields show Abc
  4. Click Sheet 1 to go to a worksheet
  5. Add the second data source: Data > New Data Source > connect billboard-songs.csv

You can switch between data sources using the Data Source selector in the toolbar.

Note

rank is numeric, so Tableau defaults to SUM — but summing ranks is meaningless. When using rank, change the aggregation to MIN, AVG, or MEDIAN.

Part 2: Guided Worksheets

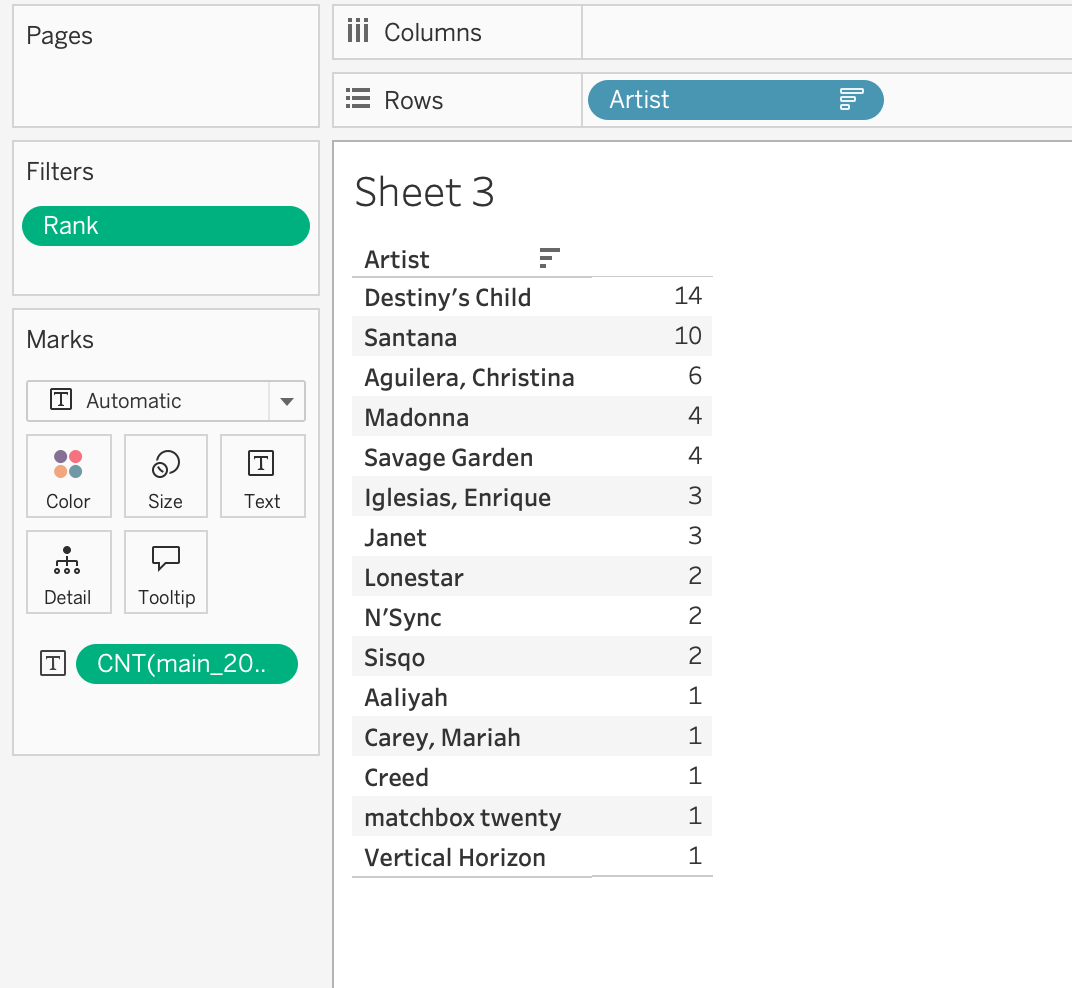

Worksheet 1: Artists with Most Weeks at #1 (bar chart)

Data source: billboard-long.csv

  1. Drag artist to Rows
  2. Drag rank to Filters — filter to only rank 1
  3. Drag chart_date to Columns — change the aggregation to CNTD (count distinct) to count the number of weeks at #1
  4. Sort descending (toolbar sort icon)
  5. Title: “Artists with Most Weeks at #1”

Artists with most weeks at #1

Worksheet 2: Song Trajectories (line chart)

Data source: billboard-long.csv

  1. Drag chart_date to Columns — Tableau may default to YEAR; right-click the pill and select WEEK(chart_date) to get weekly granularity
  2. Drag rank to Rows
  3. Reverse the Y-axis: right-click the rank axis > Edit Axis > check Reversed (rank 1 at the top)
  4. Drag artist to Filters > select 2-3 artists who had multiple songs (e.g., Metallica, Madonna). Show the filter as a dropdown: right-click the filter pill > Show Filter
  5. Drag track to Detail on the Marks card (this separates lines per song)
  6. Drag artist to Color on the Marks card
  7. Change Mark type to Line
  8. Title: “Song Trajectories”

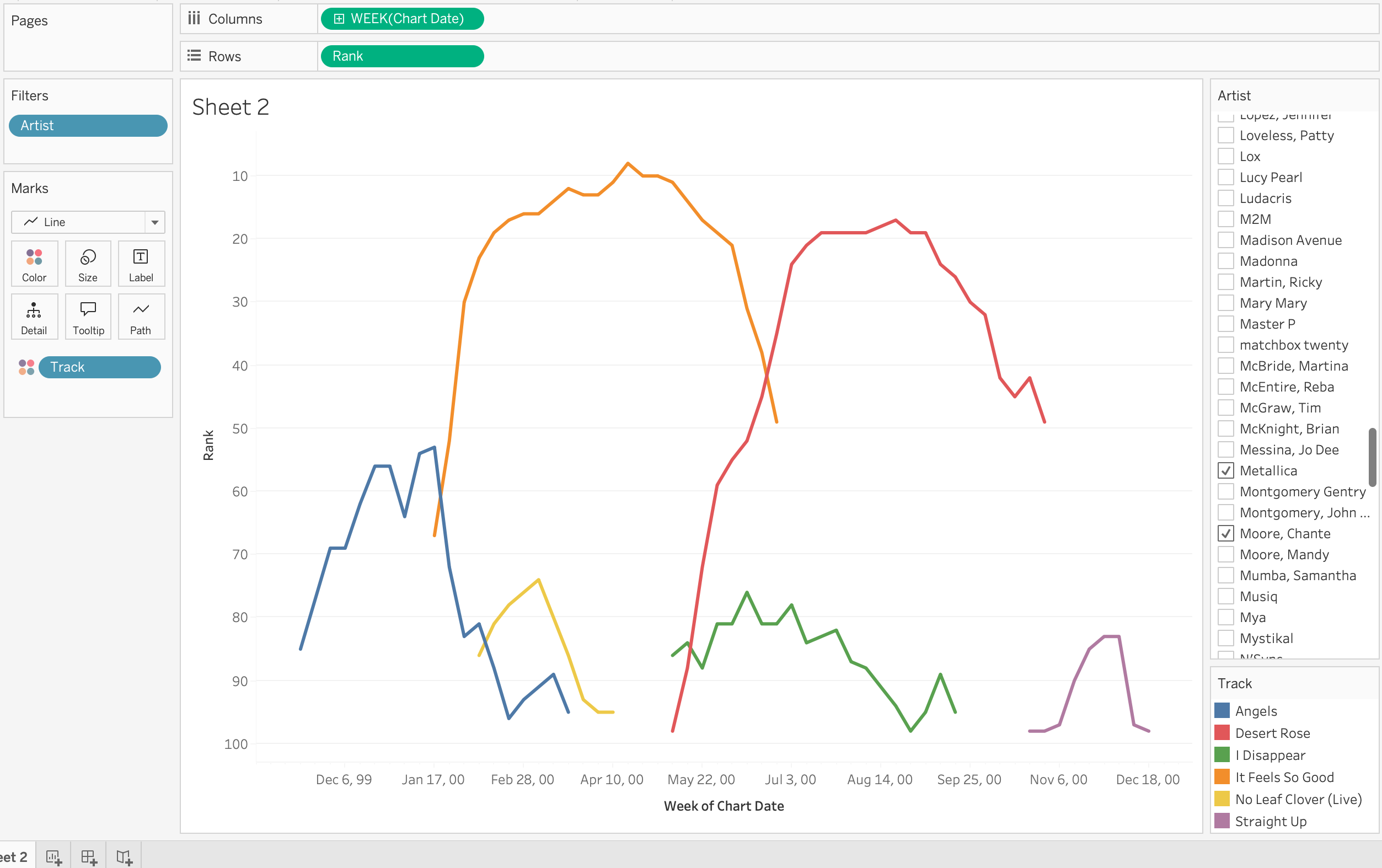

Song trajectories — filtered by artist, colored by artist, detail by track

Worksheet 3: Weeks on Chart (histogram)

Data source: billboard-songs.csv

  1. Right-click weeks_on_chart > Create > Bins… > bin size 1
  2. Drag weeks_on_chart (bin) to Columns
  3. Drag Number of Records (or CNT(track)) to Rows
  4. Title: “Distribution of Weeks on Chart”

Part 3: Choose Your Own Worksheet

Pick at least one from the menu below.

Chart Difficulty Data Source Hints
Top 15 longest-running songs (horizontal bar) Easy songs Color by peak_rank
New entries by month (bar) Easy songs Derive month from date_entered
Peak rank vs. weeks on chart (scatter) Medium songs weeks_on_chart on Columns, peak_rank on Rows. Add genre to Color
Rank x week heatmap Medium long week on Columns, track on Rows, rank to Color. Mark type: Square. Filter to top 10 songs
Weeks on chart by genre (box plot) Medium songs Use Show Me panel > box plot

Part 4: Polish & Submit

  1. Titles: Every worksheet has a descriptive title
  2. Tooltips: Hover over marks — customize via Tooltip on the Marks card
  3. Sheet names: Rename tabs (not “Sheet 1”, “Sheet 2”)
  4. Save: File > Export Packaged Workbook (.twbx) or save to Tableau Public

Your workbook should have at least 4 worksheets.

If time allows: explore freely

You have two datasets and a working Tableau setup. Think of a question about Billboard 2000 that interests you and try to answer it with a chart. Some starting points:

  • Do longer songs tend to rank higher or lower?
  • Which artists had multiple songs on the chart at the same time?
  • Is there a relationship between when a song entered the chart and how long it lasted?

Build a new worksheet, pick the right data source, and see what you find. There are no wrong answers here — the goal is to practice turning a question into a visualization.
