Week 5 Practice: Table Calculations & LOD on Olist

BUS220 - Business Intelligence and Analytics

Submission Checklist

2 points (satisfactory completion) | Deadline: 3 days after the practice session

Submit one Tableau workbook (.twbx) with:

Getting Started

Download two files from Moodle:

  1. Template workbook (.twbx) — contains pre-built views from last week
  2. Data archive (.zip) — all CSV files for the Olist dataset

Unzip the archive into a folder. Then open the .twbx file and go to the Data tab in Tableau. You will see the existing data connections pointing to the old file paths. Right-click each data source and choose Edit Connection, then re-point it to the corresponding CSV file in your downloaded folder. This ensures everything works locally on your machine.

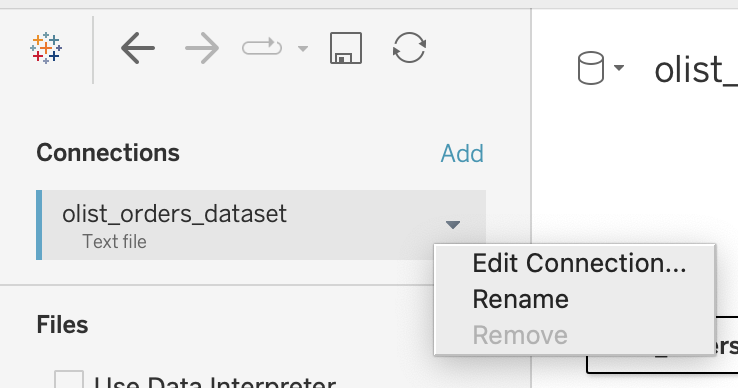

Edit Connection in the Data tab

The data model connects these tables:

Table Related on What it adds
Orders (base) Timestamps, status
Order Items (enriched) order_id Price, freight, product, English category name (from Syto merge in week 4)
Customers customer_id customer_unique_id, state
Sellers seller_id Seller location

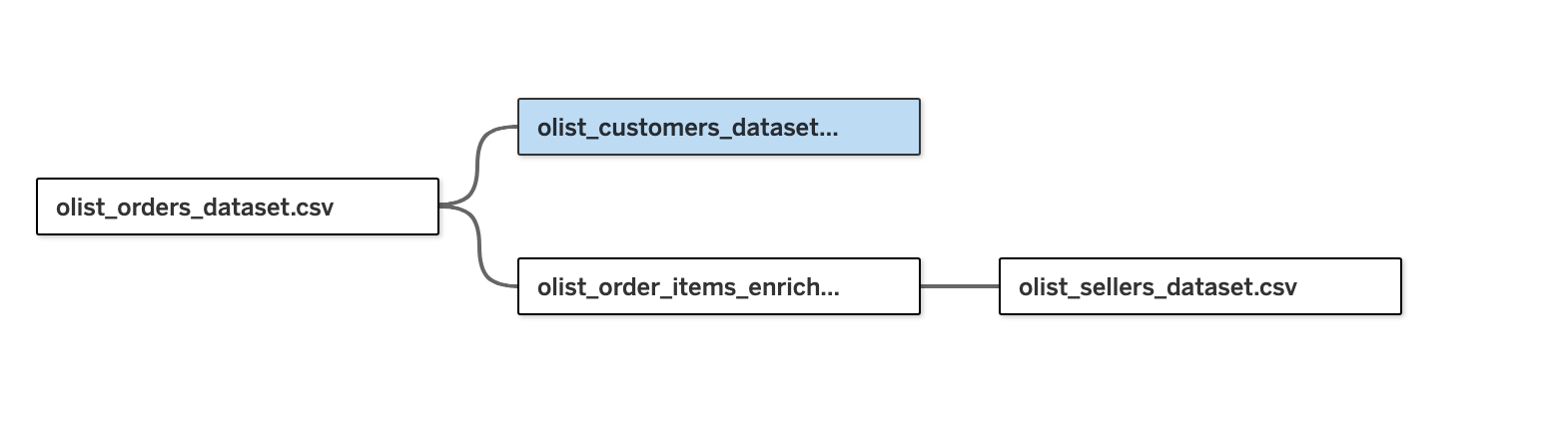

Data model relationships

A Habit: Test First, Then Visualize

Advanced calculations can surprise you. Before building a chart with a new field, test it in a text table — drag the dimensions and your new field into a simple crosstab, check the numbers, spot-check a few values. Then move to a chart. This removes ambiguity about whether a problem is in the calculation or the visualization.

Session 1: Category Breakdown with Table Calculations

Where we left off

Last week we built a monthly revenue chart colored by quarter. The key finding: Q3 2018 daily revenue is declining, while in the previous year Q3 was still rising. Revenue appears to have plateaued and started dropping. The question is why — which product categories are responsible?

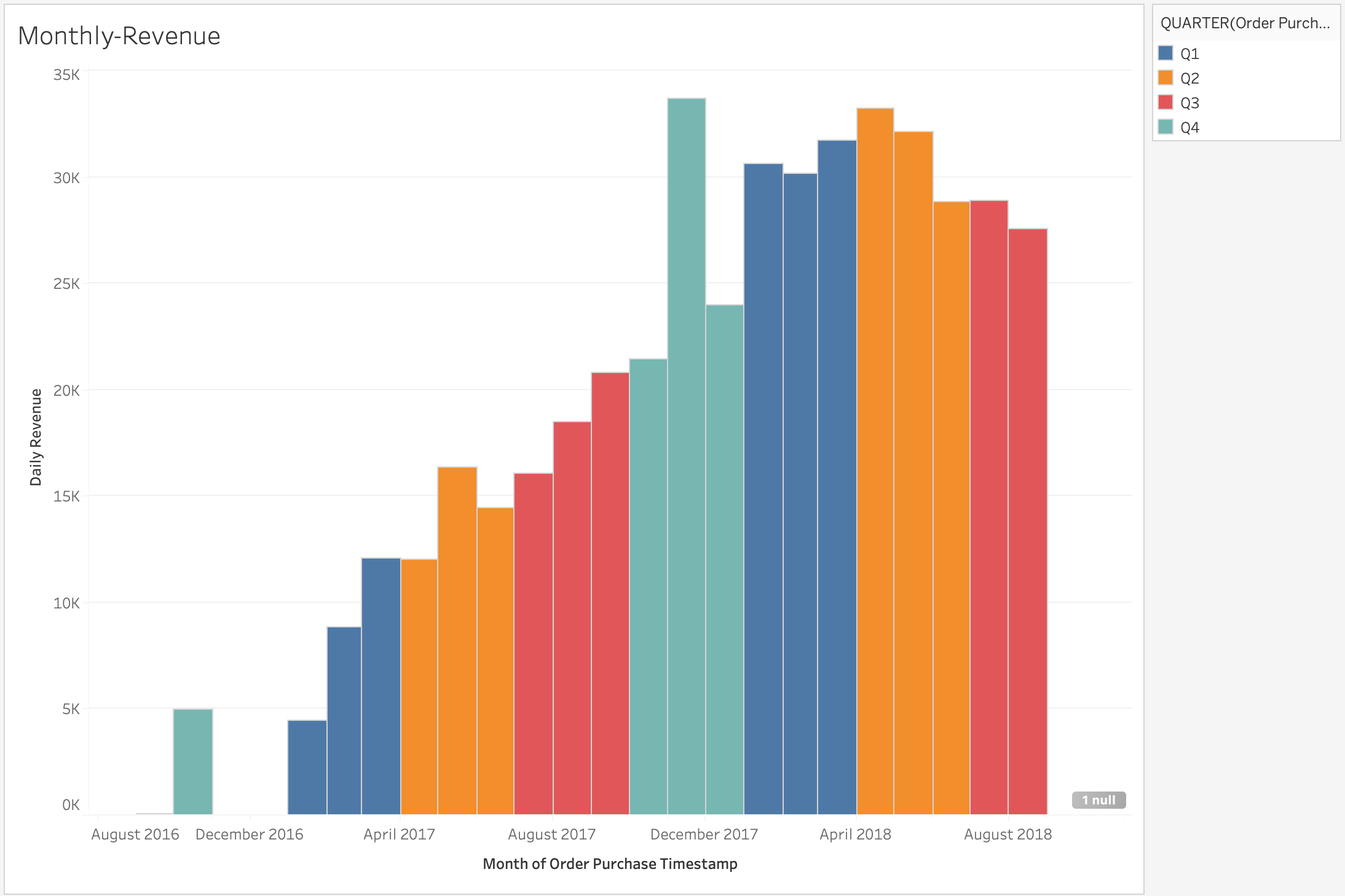

Monthly revenue by quarter — notice Q3 2018 (red) declining while Q3 2017 was still rising

Step 0: Build a Two-Level Category Hierarchy

73 categories are too granular to analyze visually. Use an LLM to create a three-column CSV (product_category_name_english, sub_category, macro_category) with 5-6 macro groups and 15-20 sub-groups.

Before prompting, discuss with your partner: what makes a good prompt here? Consider:

  • Should you provide the full list of 73 categories in the prompt, or let the LLM guess?
  • What grouping logic makes sense for an e-commerce marketplace — by use case, by buyer type, by product nature?
  • How specific should your instructions be about the number of groups?

Review the LLM output critically — does every category land in a sensible group? Then join the CSV to your data on product_category_name_english.

Step 1: Percent Difference of Daily Revenue — Q3 vs Q2 by Category

The goal is a single chart that answers: which macro categories grew or shrank from Q2 to Q3 2018, and how much do they matter?

Build a bar chart where:

  • Each bar is a macro category
  • Bar length shows the percent difference in average daily revenue between Q3 and Q2 2018
  • Bar thickness (size) encodes total revenue contribution of that category — so large categories are visually prominent and small ones are thin

To get there:

  1. Create a calculated field for average daily revenue (total revenue ÷ number of distinct days in the period)
  2. Filter to Q2 and Q3 of 2018
  3. Place macro category on Rows, the percent difference on Columns
  4. Use Quick Table Calculation → Percent Difference on the revenue measure, computed across Quarter
  5. Put total revenue on the Size mark to encode category importance
NoteAddressing and Partitioning

Every table calculation has two settings: what to compute across (addressing) and what to restart on (partitioning). When results look wrong, the first thing to check is the Compute Using direction. Test in a text table first: does each category show one percent-difference value comparing Q3 to Q2?

Step 2: Start a Dashboard

Combine your views into a dashboard layout:

  1. Monthly revenue chart (from last week) at the top — this is the context
  2. Category percent-difference bar chart below — this is the drill-down

Add a descriptive title to each view. This is the beginning of a dashboard you will continue building in Session 2.

Optional: Running Total Revenue by Day-of-Quarter

If time allows, build a chart that compares cumulative revenue trajectories across quarters:

  1. Create a calculated field: DATEDIFF('day', DATETRUNC('quarter', [Order Purchase Timestamp]), [Order Purchase Timestamp]) — this gives you “day 0, day 1, day 2, …” within each quarter
  2. Place this on Columns, and SUM([Price]) on Rows
  3. Add Quick Table Calculation → Running Total on the revenue measure
  4. Put Quarter on Color to compare trajectories side by side
  5. Filter to the quarters you want to compare (e.g., Q2 and Q3 of 2017 and 2018)

This view shows whether Q3 2018 started slow or fell off partway through — useful context for your stagnation story. If you build it, consider placing it alongside the monthly revenue chart in your dashboard.

Goal by end of Session 1: You can say “Category X is driving the decline because…” with evidence from the percent-difference chart, and you have the start of a dashboard.

Session 2: LOD Expressions + Dashboard

In Session 1, we created a new dimension externally (macro categories via an LLM) and used it to dissect the Q3 decline. Now we will create new dimensions inside Tableau using LOD expressions — computing per-order and per-customer statistics that become reusable columns.

Step 1: Order Value Tiers

The data has one row per order item, but we want to analyze at the order level. LOD expressions let us compute a value at a different grain than the view.

Create the Order Total field:

{FIXED [Order Id] : SUM([Price])}

This gives every row its full order value, regardless of how many items the order contains.

Explore the distribution. Build a histogram of Order Total — you will notice extreme outliers stretching the axis. Filter those out (e.g., exclude values above a reasonable threshold) so you can see where the bulk of orders fall. The ideal bin size is something you should figure out by experimenting — try different values until the shape of the distribution is clear.

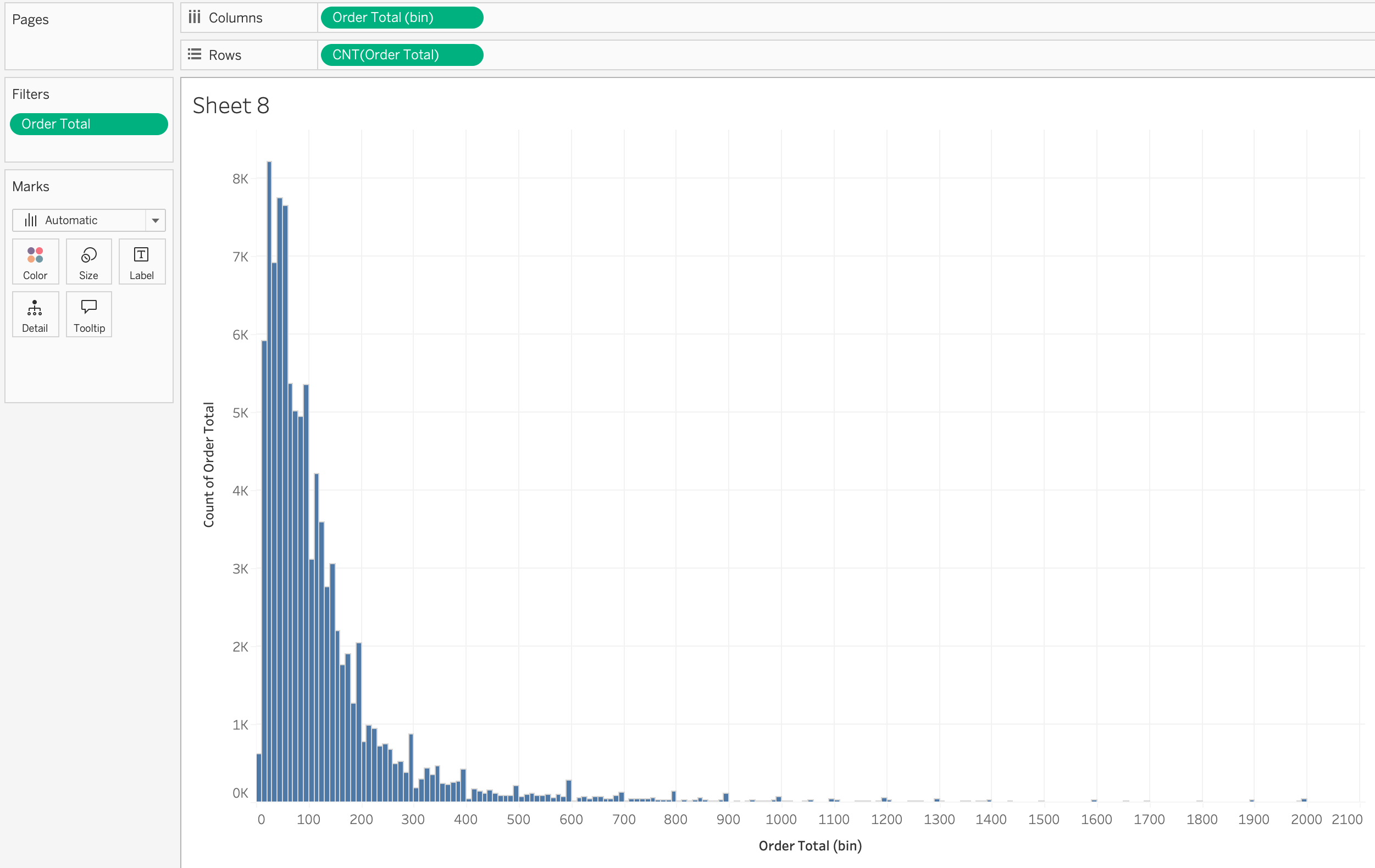

Order Total distribution — filter outliers and find a bin size that reveals the shape

Create Order Tiers. Based on the distribution, define three tiers — Small, Medium, and Premium — using an IF/THEN calculated field on Order Total. Choose breakpoints that make sense given where the data concentrates.

Step 2: Percent Difference by Order Tier

Now reuse the same percent-difference chart from Session 1, but replace the macro category dimension with Order Tier. This is the power of having built a reusable chart structure — swap in a different dimension and you get a new angle on the same question.

The chart should show: which order tier (Small / Medium / Premium) declined the most from Q2 to Q3 2018?

Takeaway so far: In Session 1 we found which product categories drove the decline. Now we know which order sizes were affected. Together, these two views pinpoint where the Q3 problem lives — not enough to explain why it happened, but enough to narrow the search.

Optional: Orders per Customer

If time allows, explore repeat-purchase behavior:

{FIXED [Customer Unique Id] : COUNTD([Order Id])}

Note that Customer Unique Id is the true customer identifier (not Customer Id, which can differ across orders).

Build a bar chart of this field. You will find that the vast majority of customers made exactly one purchase — repeat buyers are rare. This means customer-level segmentation would not add much explanatory power here, so it is not worth pursuing further for this analysis. But the LOD technique itself is the lesson.

Step 3: Scorecard — Daily Revenue by Quarter

Build a pivot table (text table) showing average daily revenue for Q2 and Q3 in both 2017 and 2018:

  • Columns: Year (filtered to 2017, 2018)
  • Rows: Quarter (filtered to Q2, Q3)
  • Values: Daily Revenue (the calculated field from Session 1)

This gives four numbers that summarize the story: in 2017, daily revenue grew from Q2 to Q3; in 2018, it declined.

Grouped bar chart. Next to the scorecard, build a bar chart with the same data — Quarter on the X axis, grouped by Year, Daily Revenue on Y. Add the percent difference as a label on the Q3 bars so the contrast is visible at a glance (+29% in 2017, -24% in 2018).

Step 4: Assemble the Dashboard

Arrange all views into a single dashboard with three rows:

Row Content
Top Scorecard (pivot table) + Grouped bar chart with percent-difference labels
Middle Monthly revenue time series (the original chart from last week)
Bottom Two percent-difference bar charts side by side — one by Macro Category, one by Order Tier

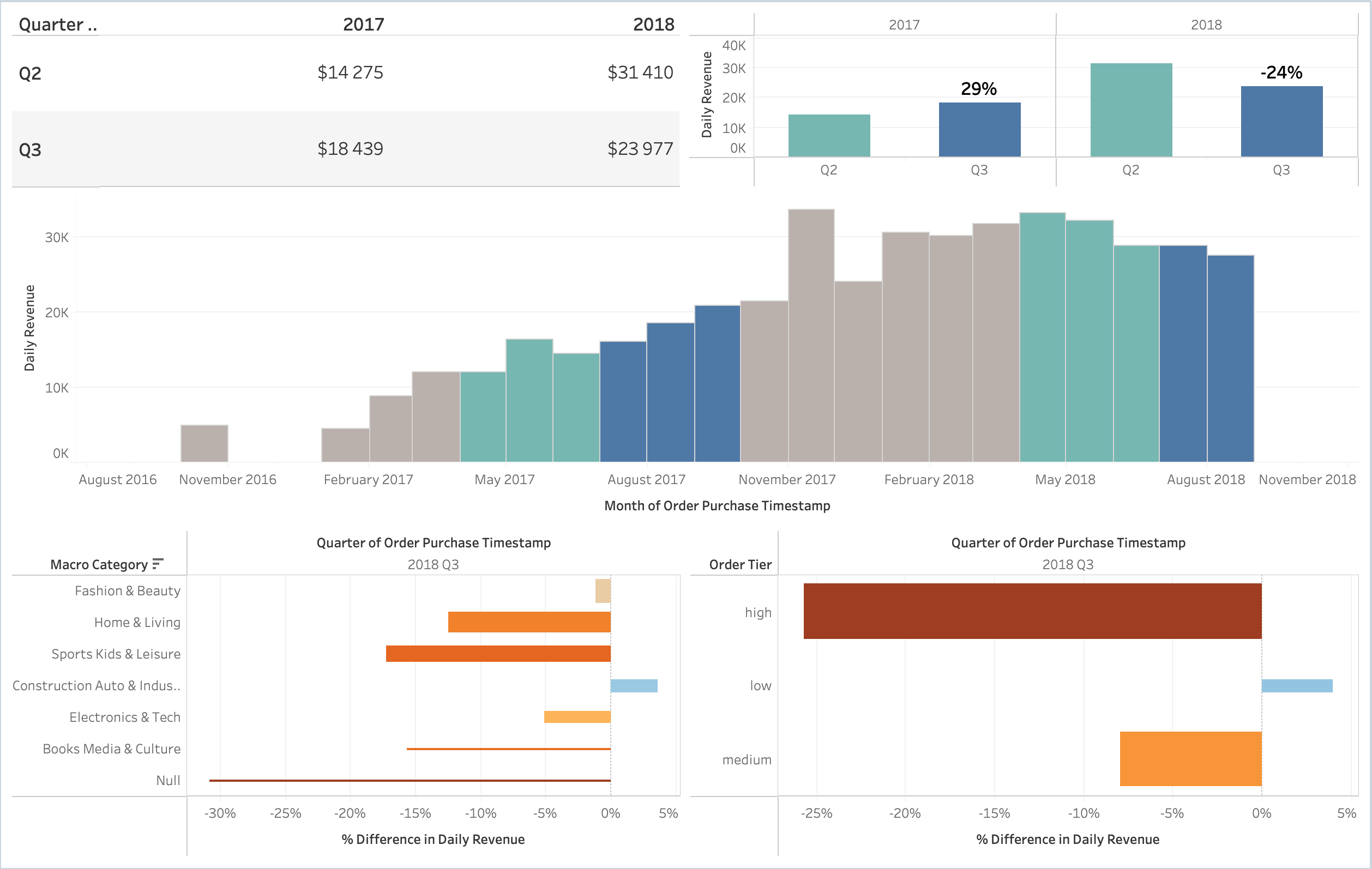

Target dashboard layout

Polish:

  • Titles — descriptive (e.g., “Q3 vs Q2 Daily Revenue Change by Category”), not “Sheet 1”
  • Tooltips — 3-4 relevant fields, not the default dump
  • Number formatting — currency with thousand separators, percentages where appropriate
  • Filter — add at least one filter that applies to all views (Quarter of Order Purchase Timestamp is a good candidate)

Takeaways

  • Table calculations run on aggregated results (percent difference, running total, rank). Always check the Compute Using direction.
  • LOD expressions compute at a grain you specify ({FIXED [Order Id] : SUM([Price])}), regardless of the view. They let you create dimensions that don’t exist in the raw data — order tiers, customer segments, etc.
  • Reusable chart structures save time: swap in a different dimension (macro category → order tier) and you get a new analytical angle without rebuilding the chart.
  • Percent difference is a powerful way to compare periods — but the chart needs to also encode magnitude so you know which segments actually matter.
  • Test first in a text table, then visualize.
  • A dashboard tells a layered story: summary numbers at the top, trend in the middle, drill-downs at the bottom.
